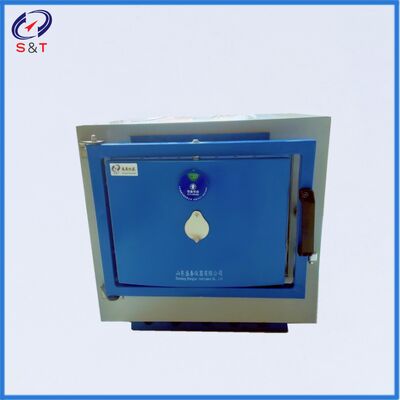

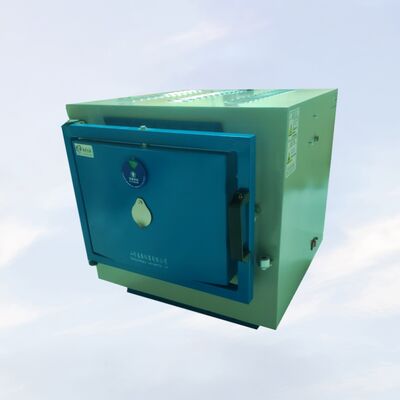

SH119 Petroleum Products Ash Tester
The SH119 petroleum products ash tester is designed and manufactured in strict compliance with the standards of GB/T 508, GB/T 2433, SH/T 0067 and ASTM D482. It is specially applied to the determination of ash content in petroleum products and sulfated ash content in lubricating greases.
Also known as Ash Content Meter for Petroleum Products / Oil Ash Content Tester, this instrument is suitable for the ash content analysis of petroleum products containing ash-based additives (including certain additives with phosphorus compounds), lead-containing lubricating oils, and used engine crankcase oils.
Equipped with a new-type ceramic furnace as its heating element, the instrument is particularly well-suited for the detection of sulfated ash content in additive-containing lubricating oils and additive concentrates used for lubricating oil blending.
Ash Content Tester for Petroleum Testing
Petroleum Products Ash Content Tester
Ash Content Tester in The Petroleum Products
Petroleum Products Ash Content Tester
Petroleum Products Ash Content Tester
performance characteristics
1. The shell is made of steel plate by folding and welding, with electrostatic spraying on the surface. The heating element is made of high-quality silicon carbon rod, and the insulation material is made of high-quality aluminum silicate fiber.
2. The furnace is made of ceramic fiber, which has the characteristics of fast heating speed (it can rise to 1000℃ in about 30 minutes) and good heat preservation effect (it is not hot to touch the shell by hand when it reaches 1000℃).
3. The control system adopts high-precision P.I.D intelligent instrument, which has self-setting, temperature error correction, timing, overtemperature alarm, good temperature stability and high precision.
The control circuit adopts no contact, which has the characteristics of no noise and high reliability.
| Power supply | AC220V ± 10%; 50Hz; |
| Rated power | 2500W |
| Heating range | room temperature ~1000 ℃; |
| Temperature control | (775 ± 25) ℃ |
| Temperature control element | thermocouples |
| Empty furnace heating time | ≤60 min |
| Temperature uniformity | ≤15 ℃ |
| Chamber size (mm) | 200 mm*120 mm *80 mm (L*W*H) |
| Instrument size | 550mm*580mm*540mm weight:32kg |
| Package size | 680mm*650mm*620mm weight:40kg |
| Porcelain crucible specification | 50ml, 100ml |
| Heating method | 0 - 220v voltage continuously adjustable |
Main technical parameters and indexes
1, working power supply: AC220V±10%;50 hz.
2, Rated power: 2.5KW;
3, heating range: room temperature ~ 1000℃;
4, temperature control: 775±25℃;
5, temperature control element: thermoelectric coupling;
6, the empty furnace heating time: ≤60 min;
7, furnace temperature uniformity: ≤15℃;
8, furnace size (mm) : length * width * height: 200 * 120 * 80.
Instrument size:550mm*5800mm*540mm weight:32kg
Package size:680mm*650mm*620mm weight:40kg
9. Equip with special heating carbonization furnace
10. Equips with special crucible frame and crucible
| S/N | Name | Quantity | Unit | Remarks |
| 1 | High temperature heating furnace | 1 | set | |
| 2 | Temperature controller | 1 | set | |
| 3 | Heat the carbonizing furnace | 1 | set | |
| 4 | Porcelain crucible | 10 | piece | |
| 5 | Crucible tongs | 1 | piece | |
| 6 | Power cord | 1 | piece | |
| 7 | Fuse tube | 1 | piece | 10A |
| 8 | Instruction manual | 1 | copy | |
| 9 | Packing list | 1 | copy | |
| 10 | Certificate | 1 | copy |
