| Brand Name: | Shengtai Instrument |
| Model Number: | ST120B |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

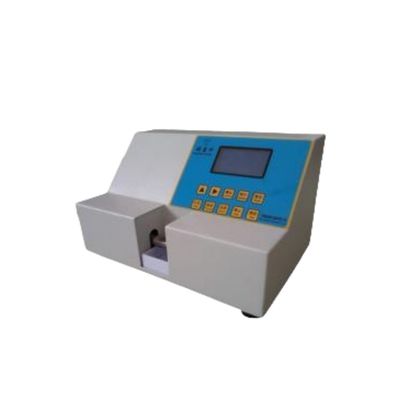

ST120B Automatic Rice and Grain hardness tester is mainly used in automatic testing hardness of grain and Rice and Grain. It is applied to Rice and Grain company ,agricultural college ,agricultural products quality inspection department, grain and oil company, and so on.
Feature:
It adopts the high precision pressure sensor circuit, single chip microcomputer control, blue LCD display. Easy operation, and display directly. Motor feed mechanism to be automatic measurement with uniform force, avoid the error by the uneven force every time. The machine can automatically calculate the maximum, minimum, average value and Standard deviation data, etc. Test result can print, and also can choose software to introduce it to the company database. To achieve sharing and high efficience.
Theory:
When arrived in the most damage, the grain or Rice and Grain automatic broken .At that time, record the hardness value of grain or Rice and Grain. With convenience operation and measurement, it supply reliable basis to control the hardness of grain or forage.
Technical parameter:
Printer: Thermal miniature printer (optical)
| Max measuring force | 20KG(40kg) |
| Max measuring diameter | 30mm |
| Minimum measuring diameter | 2mm |
| Measuring accuracy | ±0.1%(kg) |
| Resolution | 0.01Kg(0.098N) |
| Input power | 15W |
| Power supply | 220V±10% 50Hz |
