| Brand Name: | Shengtai Instrument |
| Model Number: | SH706B |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

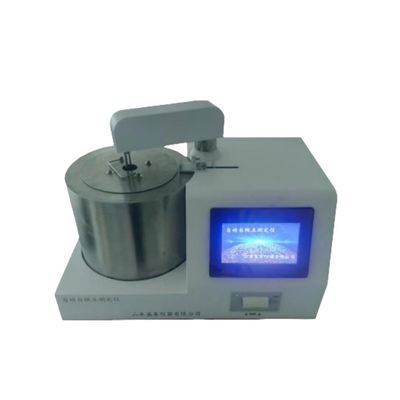

SH706B automatic Self-ignition Point Tester is designed and manufactured according to the People's Republic of China power industry standard DL/T 706-1999 and ASTM E659. It is used to measure the value of anti-fuel spontaneous combustion point. It is suitable for electric power, petroleum, chemical industry and other industries.
SH7006B Self Ignition Point Tester
Self-Ignition Point Tester-Oil Ignition Point Tester-Petroleum Self-Ignition Point Tester
ASTM E659 Automatic Self-ignition Point Tester
ASTM E659 Fuel Oil Fire Resistant Oil Autoignition Temperature
Liquid Autoignition Temperature Test Machine
Petroleum Products Self-ignition Point Tester Autoignition Point Test Apparatus
Spontaneous Ignition Point Tester Anti-ignite Power Plant Ignition Point Analyzer
The instrument adopts advanced microcomputer technology and color display with touch screen, and adopts advanced temperature control mode to automatically complete the determination of anti-fuel spontaneous combustion point. It has the functions of automatic constant temperature countdown after reaching the pre-set spontaneous combustion point, automatic sampling, automatic detection of spontaneous combustion point, and automatic printing of results.
Performance characteristics:
1.7-inch color LCD touch screen, Chinese man-machine interface, clear and intuitive.
2. PT100 temperature sensor imported from abroad is adopted
3. With over temperature alarm function, automatic measurement of the bottom center, the middle and upper side of the temperature
4. Simple operation, one key start, the test process will be completed automatically.
5. The main machine is controlled by microprocessor program, the test process automatically temperature up, automatic constant temperature.
6. Automatic injection, automatic detection of spontaneous combustion point, automatic printing, automatic stop after the test.
7, the experimental results can be exported through the U disk, stored in the computer can be compared for many times
8, with date password setting function.
Technical parameters
| Temperature control range | room temperature～800℃ |
| Temperature control accuracy | ±1℃ |
| Erlenmeyer flask | 200 ml |
| Ambient temperature | 5℃ ~ 35℃ |
| Relative humidity | ＜85% |
| Power supply | AC 220V±22V 50Hz ±2.5Hz |
| Maximum power | ＜1500W |
| Timing accuracy | 1S |
| Instrument size: 450 * 380 * 550mm Weight: 35kg | |
| Package size: 520 * 450 * 620mm Package weight: 43kg | |
packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Sampler | 1 | Set | On the host |
| 3 | Sample bottle | 1 | set | |
| 4 | Triangular flask | 1 | piece | |
| 5 | Instruction | 1 | copy | |
| 6 | Certificate warranty card | 1 | copy |
