| Brand Name: | Shengtai Instrument |
| Model Number: | SH126B |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets/year |

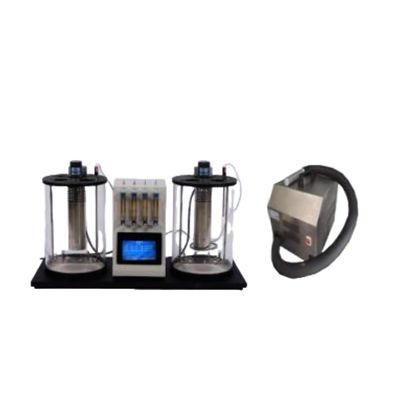

ASTM D892 Liquid crystal foam tester, double bathtubs, can do two samples at the same time SH126B
SH126B liquid crystal foam tester is designed according to GB/T12579-90 "Lubricating Foam Performance Determination Method" and ASTMD892. It is used to determine the foam characteristics of engine lubricating oil, gear oil, hydraulic oil and other oil products to evaluate the foam tendency of lubricating oil and the degree of foam stability.
Automatic Astm D892 Foam Test Equipment Lubricants Oil Foaming Characteristics Tester
ASTM D892 Lubricating Oil Foam Characterization Analyzer
ASTM D892 Foam Testing Equipment Foaming Characteristics Tester for Lubricating Oil
ISO6247 Lubricating Oils Foaming Characteristics Tester
Lubricants Testing Equipment Double Baths ASTM D892 Foam Characteristics Tester
ASTM D892 Lubricants Foaming Tendencies Analyzer Lubricating Oil Foam Characteristic Tester
Lubricating Oils Testing Laboratory ASTM D892 Foam Test Equipment
ASTM D892 Foaming Characteristics of Lubricating Oils Analyzer
The instrument is controlled by dynamic temperature control, automatic timing, air source and gas flow centralized control, 32-bit ARM processor control, high-definition color touch screen display, PID temperature control and setting technology has the advantages of accurate test temperature and high constant temperature accuracy.
The instrument can be operated according to the test method of GB/T12579-90 "Determination of Lubricating Oil Foam Performance".Foam Testing Equipment Electronic for Lubricating Oils ASTM D892 & GB/T12579 Bubble Tester
Used for testing fuel oil, lubricating oil, gear oil, hydraulic oil and other oil products.
II. Technical parameters
| working power supply | AC220V±10%, 50Hz |
| temperature control mode | LCD display |
| Temperature control range | 5~99.9℃ with refrigerators |
|
Temperature control accuracy:
|
±0.1℃;
|
| temperature measuring element | platinum resistance (PT100) |
| the number of tests | double bathtub, can do 2 samples at the same time |
| the test cylinder specification | 1000mL (special cylinder) |
| diffuser air permeability | at 2.4kPa (250mmH2O) pressure of 3000 ~ 6000mL/min; |
| timing accuracy | ±0.05 seconds |
| heating power | heater power: 2500W (93.5℃ bathtub) 800W (24℃ bathtub) |
| timing accuracy | 0.01%+0.05 seconds (at 20℃) |
| ambient temperature | -10~+40℃ |
| relative humidity | ≤85% |
| Power consumption of the whole machine | no more than 3000W. |
| Gas diffuser diameter: | 25.4mm. |
| Instrument size: 680 * 380 * 550mm Weight: 35kg | |
Packing list
| S/N | Name | Quantity | unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Portable refrigerating plant | 1 | set | |
| 3 | Measuring cylinder | 4 | piece | |
| 4 | Foam head | 4 | piece | |
| 5 | Gauge plug | 4 | piece | |
| 6 | Rubber hose | 2 | meter | |
| 7 | Thermometer | 1 | piece | |
| 8 | Power cord | 1 | piece | |
| 9 | Fuse tube | 1 | piece | 10A |
| 10 | Instruction manual | 1 | copy | |
| 11 | Packing list | 1 | copy | |
| 12 | Certificate | 1 | copy |
