| Brand Name: | Shengtai Instrument |
| Model Number: | SD-2801A |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets/year |
GB/T269 Standard Lubricating Grease Cone Penetration Tester SD2801A High Accuracy
SD-2801A cone penetration tester is designed and manufactured according to the technical requirements and relevant regulations of the People's Republic of China standard GB/T269 "Grease and petroleum grease cone penetration determination method". It is mainly suitable for testing the cone penetration of grease.
Meet Standard: ASTM D217 ASTM D1403 ASTM D 5

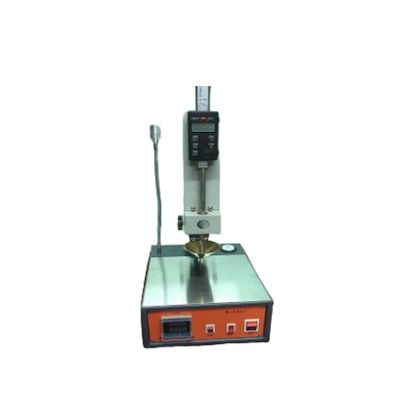

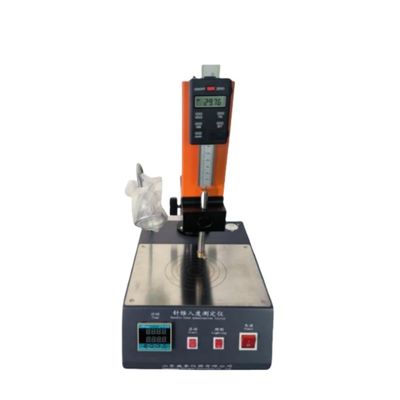

Standard Lubricating Grease Cone Penetration Tester SD2801A
Cone Penetrometer ASTM D217Lubricating Grease Cone Penetration Tester
ASTM D217Lubricating Grease Cone Penetration Tester
Lab ASTM D217Lubricating Grease Cone Penetration Testing Equipment
Standard Penetration Test ASTM D217 Dynamic Grease Cone Penetrometer
I. Main technical features
1, the use of digital display to display the taper value, intuitive and eye-grabbing.
2. Digital display of cone entry time control device.3, With lifting frame coarse adjustment, fine adjustment function, easy adjustment, accurate needle.
II. Main technical parameters and indicators
| measuring range | 0 ~ 700 cone degree |
| the time error | less than ±0.1 seconds; |
| coning accuracy | ±1 coning degree |
| standard | national standard GB/T269 ASTM D217 |
| Instrument size: 340*282*515 weight: 11kg | |
| Timing controller | Time can be set according to their own needs, the time error is less than ±0.1 seconds; |
| Resolution | 0.01mm |
| Working power supply | 80W |
| Standard cone | 102.5±0.05g |
| Needle holder |
It can be adjusted roughly and finely. Convenient toad just and exact to aim the sample
|
Packing list:
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Instrument host | set | 1 | |
| 2 | Standard cone | piece | 1 | |
| 3 | Connecting rod | piece | 1 | |
| 4 | Standard sample box | piece | 1 | |
| 5 | Fuse 5A(∮5×20) | piece | 1 | |
| 6 | Power cord(250V 6A) | piece | 1 | |
| 7 | instructions | copy | 1 | |
| 8 | Certificate warranty card | copy | 1 |
