ST120K Particle Crushing Strength Tester For Ammonium Chloride Ammonium Test Stroke 200m

ST120K Particle Crushing Strength Tester For Ammonium Chloride Ammonium Test Stroke 200m

Brand Name: Shengtai Instrument
Model Number: ST120K
MOQ: 1 carton
Payment Terms: T/T
Supply Ability: 10 cartons per week
Detail Information
Place of Origin:
China
Certification:
GB/T2945
Force Measurement Accuracy::
Better Than ± 1%
Measurement Range::
1-100kg
Displacement Resolution::
0.01mm
Test Speed::
0.5-500mm/min
Packaging Details:
Overall dimension: 300 * 420 * 650 mm (w * d * h)
Highlight:

ST120K crushing strength tester

,

Ammonium Chloride crushing strength tester

,

200m crushing strength testing machine

Product Description

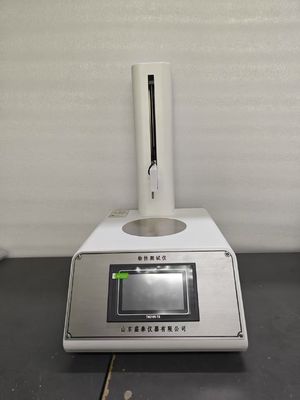

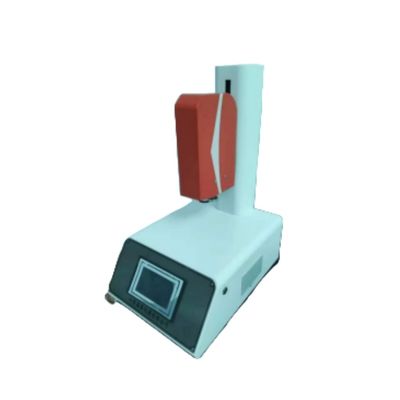

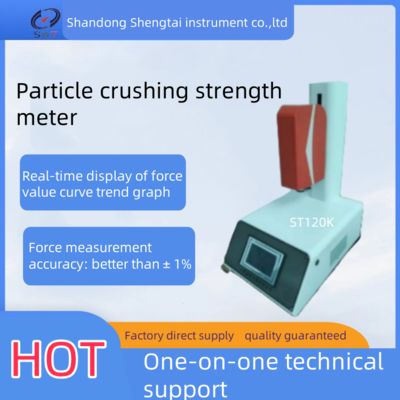

ST120K Particle Crushing Strength Tester for Ammonium Chloride and Ammonium Nitrate Determination Test Stroke 200m











ST120K Particle Crushing Strength Tester For Ammonium Chloride Ammonium Test Stroke 200m 0ST120K Particle Crushing Strength Tester For Ammonium Chloride Ammonium Test Stroke 200m 1

The ST120K particle crushing strength tester is designed and manufactured in accordance with the requirements of GB/T2946-2018 for the determination of ammonium chloride and GB/T2945 for the determination of ammonium nitrate. It meets the requirements of national standards, and is continuously optimized, innovated, and optimized. The electrical control system achieves simplified operation, making the operation more simple, convenient, and reliable. HG/T2783-1996 Test Method for Compressive Crushing Strength of Molecular Sieves, HG/T3927-2007 Determination of Compressive Strength in Industrial Activated Alumina

Functional features

  • Real-time display of force value curve trend graph
  • Automatic shutdown can be achieved by setting the positioning displacement to reach the set distance.
  • Compression test, automatic shutdown after the product is compressed to the maximum value.
  • Automatically measure the size of particle strength, automatically produce results, and automatically calculate the maximum and minimum values for multiple sets of data.

Technical parameter

  • Force measurement resolution: 1/10000 (e.g., 200kg ÷ 10000=0.02kg);

2kg (resolution 0.0002), 5kg (resolution 0.0005), 10kg (resolution 0.001)

  • Force measurement accuracy: better than ± 1%;
  • Measurement range: 1-100kg
  • Displacement resolution: 0.01mm
  • Test speed: 0.5-500mm/min;
  • Test stroke: 200mm;
  • Machine weight: about 18kg;
  • Overall dimension: 300 * 420 * 650 mm (w * d * h)
  • Power supply: single-phase, AC220v50hz.

Packing List

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Power cord 1 piece
3 Fuse tube 1 piece 10A in the safety seat
4 Instruction manual 1 copy
5 Certificate warranty card 1 copy
