| Brand Name: | Shengtai Instrument |
| Model Number: | ST120B |
| MOQ: | 1 carton |
| Payment Terms: | T/T |
| Supply Ability: | 10 cartons per week |

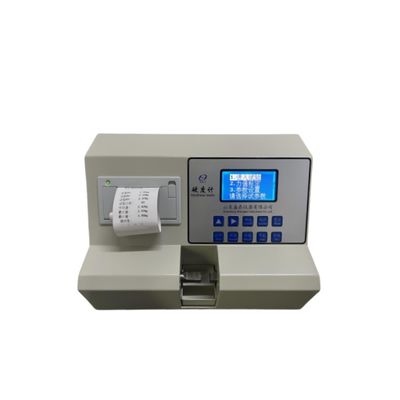

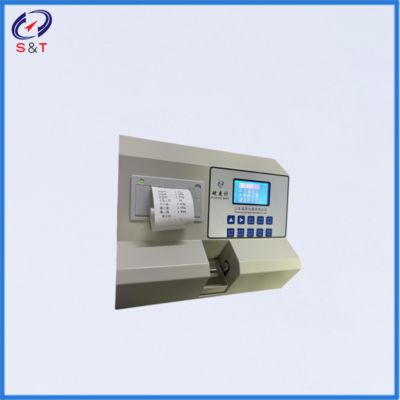

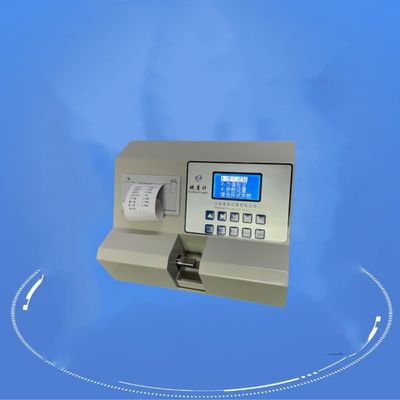

Blue LCD Display High Precision Pressure Sensor Circuit Automatic Grain / Pellets Hardness Tester Easy operation
ST120B automatic hardness tester is mainly used in automatic testing hardness of grain and feed .It is applied to feed company ,agricultural college agricultural products quality inspection department, grain and oil company, and so on.
Automatic Grain / Pellets Hardness Tester
Automatic Grain and Feed Hardness Tester
feature:
It adopts the high precision pressure sensor circuit, single chip microcomputer control, blue LCD display. Easy operation, and display directly. Motor feed mechanism to be automatic measurement with uniform force, avoid the error by the uneven force every time. The machine can automatically calculate the maximum, minimum, average value and Standard deviation data, etc. Test result can print.
Theory:
When arrived in the most damage ,the grain or feed automatic broken .At that time ,record the hardness value of grain or feed. With convenience operation and measurement ,it supply reliable basis to control the hardness of grain or forage.
Technical parameter:
Printer: Thermal miniature printer (optical)
| Max measuring force | 20KG |
| Max measuring diameter | 20mm |
| Minimum measuring diameter | 2mm |
| Measuring accuracy | ±0.1%(kg) |
| Resolution | 0.01Kg(0.098N) |
| Input power | 15W |
| Power supply | 220V±10% 50Hz |
|
Instrument size: 300 * 200 * 185mm Package size: 360 * 260 * 260mm |
|
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Printer | 1 | Piece | |
| 3 | Power cord | 1 | Piece | |
| 4 | instructions | 1 | Copy | |
| 5 | Certificate warranty card | 1 | Copy |
