| Brand Name: | Shengtai Instrument |
| Model Number: | ST119C |
| MOQ: | 1 carton |
| Payment Terms: | T/T |
| Supply Ability: | 10 cartons per week |
Accurate Feed Testing Instrument for Oil Content Measurement without Sample Crushing

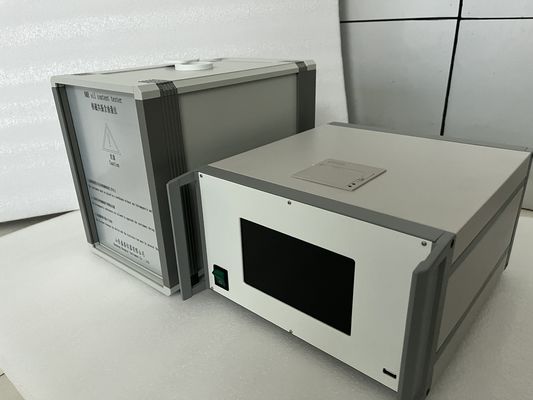

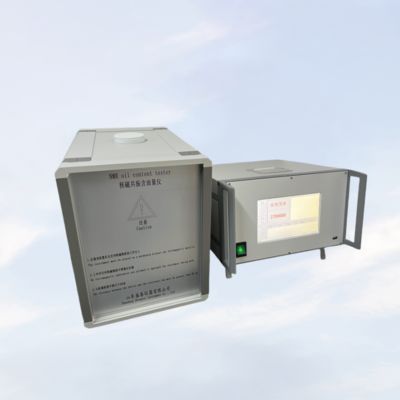

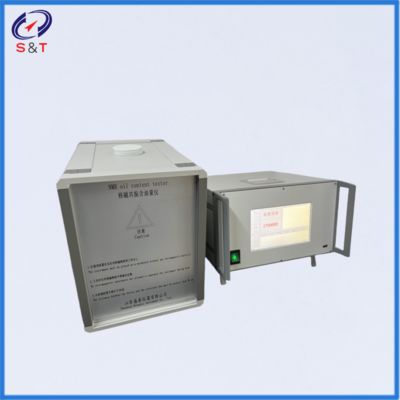

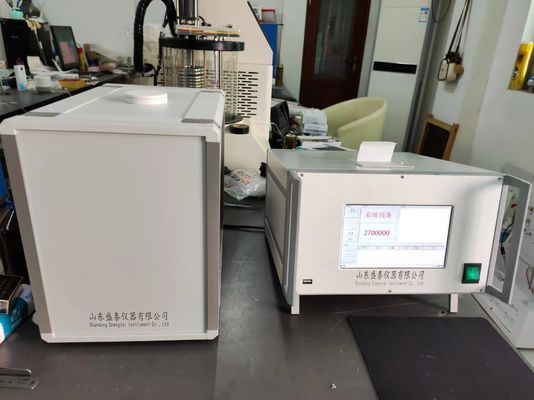

ST119C NMR oil content tester using nuclear magnetic resonance (NMR) technology, based on embedded development platform and digital signal processing technology ,This instrument can quickly measure the oil content of Oil crop seeds (Such as soybean, rapeseed, sesame, corn, cottonseed, sunflower seeds, peanuts, wheat, flax seed, tung seed, etc) and the bread, meal. It don't need to crush the samples.
It has the frequency locking technology Without manual adjustment, reduce the human error. Greatly improve the accuracy of measurement.
Product features:
1.Color LCD, mouse + keyboard, computer operation software carries on adjusting the frequency automatically,
2. The data can be copied by USB flash disk to the computer and printed, software upgrades through USB flash disk
parameter
1.Sample volume: 40ml
2.Oil measuring range: 0.1%-100%
3.Precision: +0.2%
4.Stability: +0.1%
5.Power source: 220V, 50HZ
6.Power consumption: ≤40W
| Sample volume | 40ml |
| Sample oil content range | 0.1%-100% |
| Accuracy | ±0.2% |
| Stability | ±0.1% |
| Power | 220V50Hz |
| Power consumption | ≤40W |
Packing and Shipping
Package : Carton box package
Shipping : 5days
Dimensions and weight:
Main unit: Desktop 360mm, 310mm, 160mm. Weight: approximately 5kg
Extension: Desktop 360mm, 280mm, 210mm Weight: approximately 22kg
