| Brand Name: | Shengtai instrument |
| Model Number: | SH017 |
| MOQ: | 1 |
| Price: | 6114 |
| Payment Terms: | T/T |
| Supply Ability: | 100000sets/year |

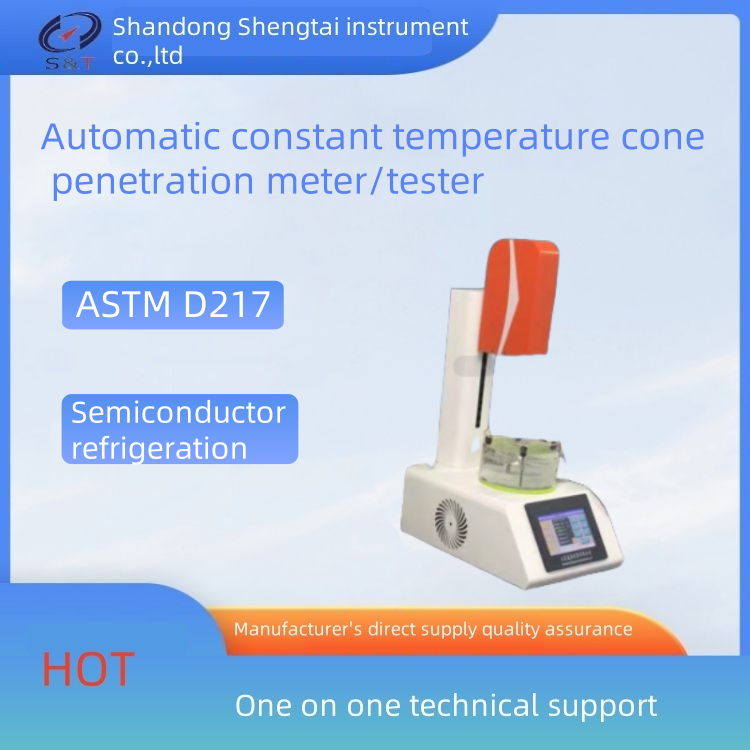

The SH017 Automatic Constant Temperature Cone/Needle Penetration Tester is designed and manufactured according to GB/T269, ASTM D217, and GB/T4509 ASTM D5 standards. It is primarily used for testing the cone penetration of grease (or Vaseline).
| Parameter | Specification |
|---|---|
| Measurement Range | 0-680 Penetrations |
| Resolution | 0.1 Penetration (0.01mm) |
| Temperature Control Accuracy | 25±0.1°C |
| Taper Precision | ±1 cone degree |
| Standard Cone | 102.5±0.05g (ASTM D217 & GB/T269 compliant) |
| Stirring Method | Automatic magnetic stirrer |
| Data Output | USB output in CSV or EXCEL format |
| Printing | Built-in micro thermal printer |
| Item | Unit | Quantity | Remarks |
|---|---|---|---|
| Instrument host | set | 1 | |
| Standard cone | piece | 1 | |
| Standard sample box | piece | 1 | |
| Heating and cooling thermostatic bath | set | 1 | For winter warming and summer cooling |
| Power cord | piece | 1 | |
| Instructions | copy | 1 | |
| Certificate warranty card | copy | 1 |
