ASTM D445 Automatic Petroleum Kinematic Viscosity Tester 0.4-2000mm2/s

ASTM D445 Automatic Petroleum Kinematic Viscosity Tester 0.4-2000mm2/s

Brand Name: Shengtai Insturment
Model Number: SH112H
MOQ: 1
Price: $11200
Payment Terms: T/T
Supply Ability: 10 cartons per week
Detail Information
Place of Origin:
China
Certification:
ASTM D445
Number Of Measurements:
2 Groups
Temperature Range: Room Temperature:
-100℃
Temperature Control Accuracy:
±0.1℃
Viscosity Measurement Range:
0.4-2000mm2 /s
Packaging Details:
Package size: 520 * 480 * 650 weight: 39kg
Highlight:

ASTM D445 viscosity tester

,

automatic petroleum viscosity tester

,

kinematic viscosity tester 2000mm2/s

Product Description

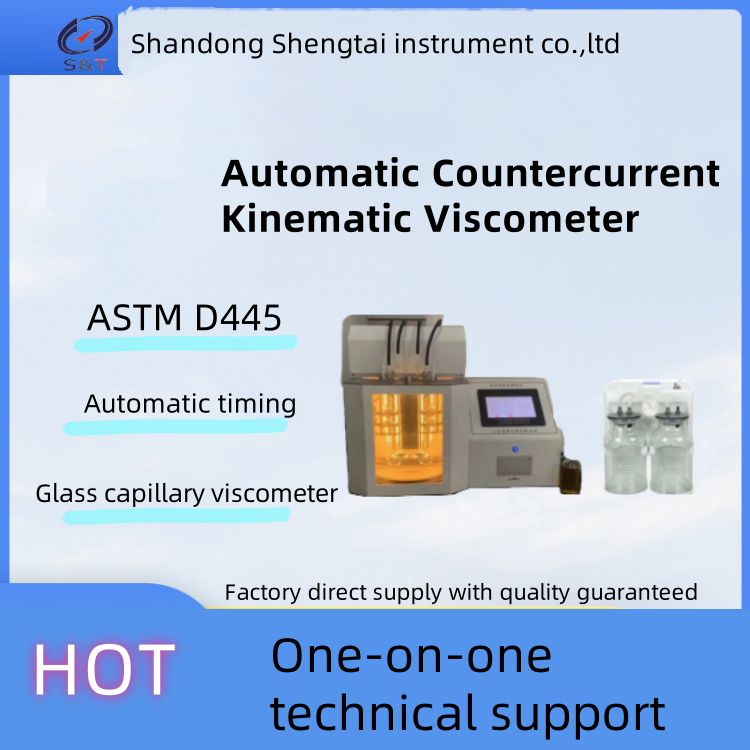

ASTM D445 Automatic Dark-Colored Petroleum Countercurrent Kinematic Viscosity Tester 50Hz
ASTM D445 Automatic Petroleum Kinematic Viscosity Tester 0.4-2000mm2/s 0
The SH112H automatic dark-colored petroleum kinematic viscosity tester is designed and manufactured according to GB/T11137 and SY2409 standards. It is suitable for determining the kinematic viscosity of dark-colored petroleum products and heavy oil.
This fully automated system performs constant temperature control, viscosity testing, cleaning, and drying of viscometers without operator intervention. Operators can leave the testing area while the instrument completes all tasks automatically.
Key Features
  • Large color touch screen display
  • 32-bit microprocessor control core
  • Imported components for enhanced stability
  • Fully automated operation: timing, calculation, printing, cleaning, drying
  • Fast temperature control with heating rate >5℃/min
  • LED soft lighting for better observation
  • Viscometer parameter storage function
  • Date password setting function
  • Optional TCP network transmission
  • Optional LIMIS system connectivity
  • Expandable memory up to 16GB
Technical Specifications
Attribute Value
Number of measurements 2 groups
Temperature range Room temperature - 100℃
Temperature control accuracy ±0.1℃
Viscosity measurement range 0.4-2000mm²/s
Timing accuracy ±0.1S
Heating power 2000W
Power supply AC220V±10%, 50Hz
Dimensions (L×W×H) 450×380×500mm
Weight 32kg (39kg packaged)
Standard Compliance
GB265-88, ASTM D445, GB/T11137, SY2409
Package Contents
Item Quantity Unit Remarks
Full-automatic viscosity tester 1 set
Electric aspirator 1 set
Special viscosity tube 4 piece Comply with GB/T11137
Sample injector 1 piece
Printing paper 2 piece
Certificate 1 copy
Instructions 1 copy
